Safety Belt Full Body

Rear Attachment Safety Harness / Industrial Safety Belt / Universal Fall Arrest Harness / Full Body Harness This universal safety harness features rear attachment, and with high-strength bright color polyester webbing. Multi-purpose, general fall arrest harness highly rated to 100kg, giving assurance of premium performance for all users with tool loading included. Adjustable waist and thigh straps for user’s comfort. Application： The harness is ideal for construction, industrial, working at height, as general purpose and fall arrest. Workers could coordinate with other fall protection products like energy absorbing lanyard, fall arresters, and adding working belt for hand tools. Product Spec. ： Webbing material：44mm Polyester webbing Color：Blue and Green Certified to EN 361：2002 Anchorage points：1 Dorsol, steel Buckles：Chest and legs, (pass-thru style), steel Rear Plastic Adjuster：PVC Max. Working Load：100 kg Related Products： Rear Attachment Style Safety Harness SB-S115-BG SB-S115-GO SB-S115-AN Webbing Material 44mm Polyester 44mm Polyester 44mm Polyester Color Blue & Green Green & Orange Yellow & Blue Certified To EN 361：2002 EN 361：2002 ANSI Z359.1：2007 ANSI Z359.12：2009 Anchor Points 1 Rear 1 Rear 1 Rear Rear Adjuster PVC PVC PE Buckles Chest and legs Chest and legs Chest and legs Max. Working Load 100 kg 100 kg 100 kg Front & Rear Attachment Style Safety Harness SB-S102-OB SB-S102-OBK SB-S102-AN Webbing Material 44mm Polyester 44mm Polyester 44mm Polyester Color Orange & Blue Orange, Blue & Black Yellow & Blue Certified To EN 361：2002 EN 361：2002 ANSI Z359.1：2007 ANSI Z359.12：2009 Anchor Points 1 Dorsal, 2 Chest 1 Dorsal, 2 Chest 1 Dorsal, 2 Chest Buckles Waist and legs, steel Waist and legs, steel Waist and legs, steel Max. Working Load 100 kg 100 kg 100 kg You may also need products： Fall arrester Energy Absorbing Lanyard Positioning Lanyard Rope Grab Working Safety Belts Red Wood is the leading company in safety harness manufacturer in Taiwan. We excel at producing fall protection products with international certification, reliable quality system and competitive price. EDM and OEM are welcome.

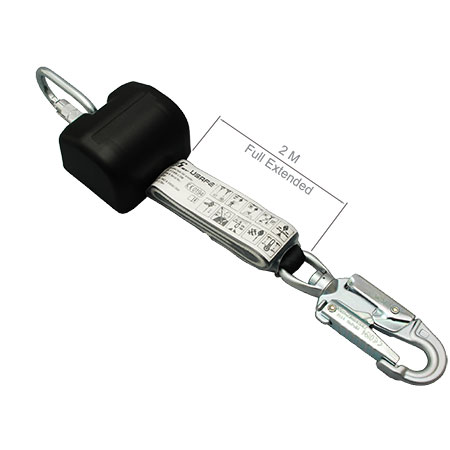

Retractable Fall Arrester / Self-Retractable Lifeline(SRL) Retractable Type Fall Arresters are used as a component in a Personal Fall Protection Systems where a combination of worker mobility and fall protection is required. This fall arrester could be applied to building construction, working at height, and any place need fall protection. A fall arrester must attach to a full body harness as a component of a personal fall protection systems. Different lengths are used in different occasions. Details as listed below：   Housing material：PP Lifeline material：Polyester Lifeline width：48mm Snap Hook material：steel Anchor connector material：steel Max. Working Load：100 kg Working Length：2 m Certified to EN 360：2002 Product Weight (with snap hook)：1.4 kg Country of origin：China   CAUTION This equipment can only be used by trained and competent persons. Otherwise, the user should be under the direct supervision of a trained and competent person. INSPECT Always inspect safety harness before using it. Check for tears, cuts, fraying, abrasion, discoloration, burns, holes, mold, pulled / broken stitches, or other signs of wear / damage on the webbing / wire rope, carabiner / snap hook. If the fall arrester is showing any signs of noticeable wear or damage, defect, inadequate maintenance, or unsafe condition, it must be removed from service immediately, because it may cause injury or death. Red Wood is the leading company in self-retractable life manufacturer in Taiwan. We excel at producing fall protection products with international certification, reliable quality system and competitive price. EDM and OEM are welcome.

16mm Double Ring Type Steel Rope Grab Vertical Fall Arrest Rope Grabs Our most popular type rope grab. Hinged body allows simple placement at any point along the vertical lifeline. Manual option allows the user to fix in place. Features an anti-panic function should the user grab ahold of the device during a fall event. F-22C-N Material：Steel rope grab For use with 5/8 inch (16mm) lifeline. Double ring type. Application： Rope grabs could be coordinated with absorber lanyard, fall arresters, and carabiners. Check rope diameter and material to choose your most suitable rope grab.     F-22C-N Material Steel Rope Diameter 16mm Other related products： Could change combination   F-11 series F-11SS-14P Material Steel Stainless steel Rope Diameter 12/14/16mm 16mm Circle Type Rope Grabs：   F-24M F-25A Material Steel Stainless steel Rope Diameter 16mm 16/19mm Stainless Steel Rope Grabs These rope grabs are made of stainless steel. They are self-tracking, hinged rope grab for 8/16/19mm lifeline rope. Check the different styles and rope diameter.     F-11SS-14P F-25A F-29 F-34 Material Stainless steel Stainless steel Stainless steel Stainless steel Rope Diameter 16mm 16/19mm 16mm 8mm You may also need products： Safety Harness Fall Arrester Energy Absorbing Lanyard Positioning Lanyard Rope Grab Working Safety Belts

22KN Steel Scaffold Hook / 25KN Aluminum Scaffold Hook Scaffold hooks are usually applied to fall arrest kit and fall protection system. For example, industrial harness coordinate with working lanyard, positioning lanyard, and energy absorbing lanyards. If you are looking for 22KN scaffold hooks, we recommend F-15-1 or HK001. For 25KN scaffold hooks, we recommend HK005 or HK006. If you are looking for aluminum scaffold hooks, then HK005 is the best choice because it’s much lighter than steel scaffold hook. F-15-1 Strength：22KN Scaffold Hook Material：Steel L x W：212.4mm*100.8mm Gate opening：51 mm Product Weight (approx.)：0.50 KG Certified to：EN362：2004 HK001 Strength：22KN Scaffold Hook Material：Steel L x W：199mm*116mm Gate opening：51 mm Product Weight (approx.)：0.42 KG Certified to：EN362：2004 HK005 Strength：25KN Scaffold Hook Material：Aluminum L x W：216.1mm*120.3mm Gate opening：53 mm Product Weight (approx.)：0.28 KG Certified to：EN362：2004 HK006 Strength：25KN Scaffold Hook Material：Steel L x W：199mm*107mm Gate opening：51 mm Product Weight (approx.)：0.31 KG Certified to：EN362：2004 Related Products：   F-15-1 HK001 HK005 HK006 Strength 22KN 22KN 25KN 25KN Material Steel Steel Aluminum Steel Dimension 212.4*100.8mm 199*116mm 216.1*120.3mm 199*107mm Gate Opening 51mm 51mm 53mm 51mm Unit Weight 0.5kg 0.42kg 0.28kg 0.31kg Origin Taiwan Taiwan Taiwan China You may also need products： Safety Harness Fall Arrester Energy Absorbing Lanyard Positioning Lanyard Rope Grab Working Safety Belts

Steel Double D-ring 45mm/ Stainless Steel Triangle D-ring D-rings are most used on safety harness, working belts, and industrial belts. They could be an anchor point or a place to hang user’s hand tools. There is different material, finishing methods and strength for choosing. Red Wood could also help customize different color, like black chrome or black EP, black powder coating. BD304 Material：Steel Double D-ring Strength：3060 kg Width：For 45mm webbing DD302C Material：Stainless Steel Triangle D-ring Strength：2550 kg Width：for 45mm webbing ES-01 Material：Steel Double D-ring Strength：3500 kg Width：For 45mm webbing Application：Dorsal D-ring Related Products：   BD304 DD302 ES-01 Type Double D-ring Double D-ring Double D-ring Material Steel Stainless Steel Steel Strength 3060 kg 2550 kg 3500 kg Width 45mm 45mm 45mm     SB-02 SB-03 BU-220 DBI-3513-13 Type 2 bar slide 3 bar slide Slot-in Buckle frame Material Steel Steel Steel Steel Strength 2000 kg 1500 kg 2000 kg 2200kg Width 45mm 45mm 45mm 45mm     BUCKLE-RW1+T RD180+T Type Quick Release Buckle Quick Release Buckle Material Steel Aluminum Tongue Material Steel Steel Strength 1200 kg 16 KN Width 45mm 45mm / 25mm You may also need products： Safety Harness Fall Arrester Energy Absorbing Lanyard Positioning Lanyard Rope Grab Working Safety Belts
