Full Body Harness

External Shock Absorbing Webbing / Energy Absorbing Webbing / Fall-arrest Lanyard Webbing Fall-arrest Lanyard Webbing is used as a component in a Personal Fall Protection Systems where a combination of worker mobility and fall protection is required. When do I need an energy absorbing webbing? Fall arrest lanyards reduce the impact of a fall via a shock-absorber within the system. This lanyard webbing comes in lengths up to a maximum of 1.8 m. They should only be used with sufficient height clearance. Application： A full body harness must be worn when this equipment is used as a component of a personal fall protection systems. Details as below： EAW-SL-OO1 Type：Single Leg Energy Absorbing Webbing Lifeline material：polyester webbing Color：Orange and Orange Snap Hook material：steel Carabiner material：steel Max. Working Load：100 kg Total Length：1.8 m Certified to CE/EN355：2002 EAW-TL-GB5 Type：Twin Leg Energy Absorbing Webbing Lifeline material：polyester webbing Color：Green and Blue Snap Hook material：steel Carabiner material：steel Max. Working Load：100 kg Total Length：1.8 m Certified to CE/EN355：2002

Retractable Fall Arrester / Self-Retractable Lifeline(SRL) Retractable Type Fall Arresters are used as a component in a Personal Fall Protection Systems where a combination of worker mobility and fall protection is required. This fall arrester could be applied to building construction, working at height, and any place need fall protection. A fall arrester must attach to a full body harness as a component of a personal fall protection systems. Different lengths are used in different occasions. Details as listed below：   Housing material：PP Lifeline material：Dyneema Lifeline width：17mm Snap Hook material：steel Anchor connector material：steel Max. Working Load：100 kg Working Length：1.35 m Certified to EN 360：2002 Product Weight (with snap hook)：1.1kg Country of origin：China   CAUTION This equipment can only be used by trained and competent persons. Otherwise, the user should be under the direct supervision of a trained and competent person. INSPECT Always inspect safety harness before using it. Check for tears, cuts, fraying, abrasion, discoloration, burns, holes, mold, pulled / broken stitches, or other signs of wear / damage on the webbing / wire rope, carabiner / snap hook. If the fall arrester is showing any signs of noticeable wear or damage, defect, inadequate maintenance, or unsafe condition, it must be removed from service immediately, because it may cause injury or death. Red Wood is the leading company in self-retractable life manufacturer in Taiwan. We excel at producing fall protection products with international certification, reliable quality system and competitive price. EDM and OEM are welcome.

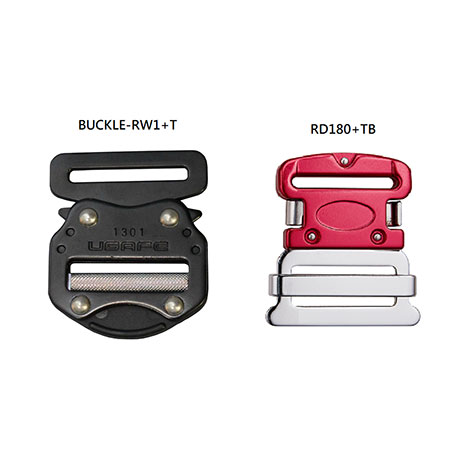

Steel Quick Release Buckle 1200KG / 16KN Aluminum Quick Release Buckle Quick release buckles are mostly applied to safety harness. It’s an important component for full body harness. It enables users to release and tight quickly. It saves much time when users put on and take off full body harness. Quick release buckles could also be coordinate with working belts, and industrial belts.   Red Wood manufacturers two material quick release buckle. Steel quick release buckle → BUCKLE-RW1+T Aluminum quick release buckle → RD180+T BUCKLE-RW1+T Material：Steel Quick Release Buckle Strength：1200 kg Width：For 45mm webbing Buckle Color：Black Tongue Color：Original RD180+T Buckle Material：Aluminum Tongue material：Steel Strength：16KN Aluminum Quick Release Buckle Width：For 45mm webbing, we also provide 25mm quick release buckle Logo：Customized Buckle Color：Black / Red Tongue Color：Original/ Black Related Products：   BD304 DD302 ES-01 Type Double D-ring Double D-ring Double D-ring Material Steel Stainless Steel Steel Strength 3060 kg 2550 kg 3500 kg Width 45mm 45mm 45mm     SB-02 SB-03 BU-220 DBI-3513-13 Type 2 bar slide 3 bar slide Slot-in Buckle frame Material Steel Steel Steel Steel Strength 2000 kg 1500 kg 2000 kg 2200kg Width 45mm 45mm 45mm 45mm     BUCKLE-RW1+T RD180+T Type Quick Release Buckle Quick Release Buckle Material Steel Aluminum Tongue Material Steel Steel Strength 1200 kg 16 KN Width 45mm 45mm / 25mm You may also need products： Safety Harness Fall Arrester Energy Absorbing Lanyard Positioning Lanyard Rope Grab Working Safety Belts

Double-action Swivel Eye Snap Hook / Indicator Snap Hook / Steel Snap Hook Snap hooks are mostly applied to fall arresters, working lanyard, positioning lanyard, and energy absorbing lanyards. It could be coordinate with other fall protection products. Shopping Tips： For swivel snap hooks, we recommend F-11B-15R or RF-240. For steel snap hooks, F-12-C1 or RF-219 is enough. It depends on the strength and gate opening you need. F-11B-15R Strength：20KN swivel snap hook Material：Steel L x W：128.8mm*54mm Gate opening：16 mm Product Weight (approx.)：0.42 KG Certified to：EN362：2004 High light product： If you need an indicator on snap hooks, we also could supply. For swivel snap hooks with indicator, RF-240 is the best choice for users could check if this fall arrester is used or not to keep them safe. RF-240  Strength：20KN swivel snap hook with indicator Material：Steel L x W：166mm*56.5mm Gate opening：18 mm Product Weight (approx.)：0.38 KG Certified to：EN362：2004 F-12-C1 Strength：20KN snap hook Material：Steel L x W：128.8mm*54mm Gate opening：17 mm Product Weight (approx.)：0.30 KG Certified to：EN362：2004 RF-219 Strength：22KN snap hook Material：Steel L x W：141.7mm*57.1mm Gate opening：18 mm Product Weight (approx.)：0.32 KG Certified to：EN362：2004 Related Products：   F-11B-15R RF-240 F-12-C1 RF-219 Type Snap Hook Snap Hook Snap Hook Snap Hook Swivel Swivel Swivel Non-Swivel Non-Swivel Strength 20KN 20KN 20KN 22KN Material Steel Steel Steel Steel Dimension 128.8*54mm 166*56.5mm 128.8*54mm 141.7*57.1mm Gate Opening 16mm 18mm 17mm 18mm Unit Weight 0.42kg 0.38kg 0.3kg 0.32kg     F-15-1 HK001 HK005 HK006 Strength 22KN 22KN 25KN 25KN Material Steel Steel Aluminum Steel Dimension 212.4*100.8mm 199*116mm 216.1*120.3mm 199*107mm Gate Opening 51mm 51mm 53mm 51mm Unit Weight 0.5kg 0.42kg 0.28kg 0.31kg Origin Taiwan Taiwan Taiwan China You may also need products： Safety Harness Fall Arrester Energy Absorbing Lanyard Positioning Lanyard Rope Grab Working Safety Belts

44/45mm Safety Harness Webbing Red Wood manufactures safety harness and webbing, adjuster, 2 bar slide, 3 bar slide, quick release buckle for fall protection and fall arrest from working at height. If you are looking for a webbing manufacturer, check the spec. We are glad to supply webbing for you. 44/45mm Webbing Application： Safety harness webbing Fall protection equipment use webbing Energy absorbing webbing Industrial safety belt, work belts Product spec.： Material：Polyester/ PP/ Nylon Width：most used width are 1 inch (25mm) & 2 inch (44/45mm) Color：Black, Red, Yellow, Green, Blue or upon order Width, thickness, pattern, color can be customized upon request Our safety harness certified to CE and ANSI standard. Test before shipment and provide report. We supply other components for safety harness and customize your logo. Parts name Option 1 Option 2 Webbing 25mm for chest webbing 45mm Front D-ring Dorsal D-ring O-ring Webbing adjuster 2 bar slide 3 bar slide Quick release buckle Steel Aluminum Other spec. webbing： 25mm webbing for baby seat belt, baby car, tie down 38mm webbing for baby seat belt, tie down 44/45mm webbing for safety harness 48mm webbing for seat belt

1" 25mm Baby Seat Belt Webbing / Tie Down Webbing Red Wood designs and manufactures webbing for Automotive industry, including car safety belts, commercial vehicle safety belt, and child safety belts for automotive manufacturers. 25mm Webbing Application： Child seat straps, child seat belt webbing Baby car webbing Tie down webbing (25mm, 38mm, 50mm, 75mm) Lift sling (25mm, 30mm, 50mm, 60mm, 75mm, 90mm, 100mm, 120mm, 125mm, 150mm) Product spec.： Standard automotive safety belt spec Material：Polyester/ Nylon/ PP Width：most used width are 1 inch (25mm), 1.5 inch & 2 inch (38mm) Color：Black or upon order Width, thickness, pattern, color can be customized upon request   Certified to Description OEKO TEX 100 Textiles Test of No Harmful Substances ECE R44 Standard for Child Car Seats FMVSS 302 Flammability Test of Automotive Materials Red Wood is the leading webbing supplier in Taiwan. We are specialized in webbing that meets FMVSS 209, FMVSS 302, ECE R16, ECE R44 and OEKO standard. Red Wood equipped with professional test machines perform tests of Webbing Elongation and Breaking Strength, Webbing Abrasion (Hex Bar and Buckle Tests), Flammability, color colorfastness on-site. OEM and ODM are welcome. Feel free to contact us for a specific requirement we are more than happy to help developing quality webbings for you. Other spec. webbing： 25mm webbing for baby seat belt, baby car, tie down 38mm webbing for baby seat belt, tie down 44/45mm webbing for safety harness 48mm webbing for seat belt
